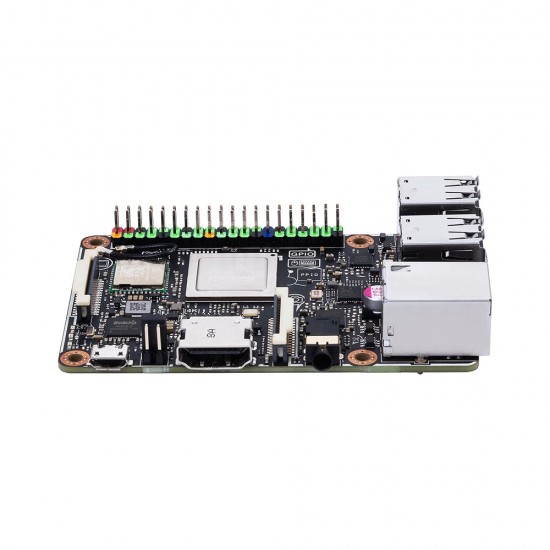

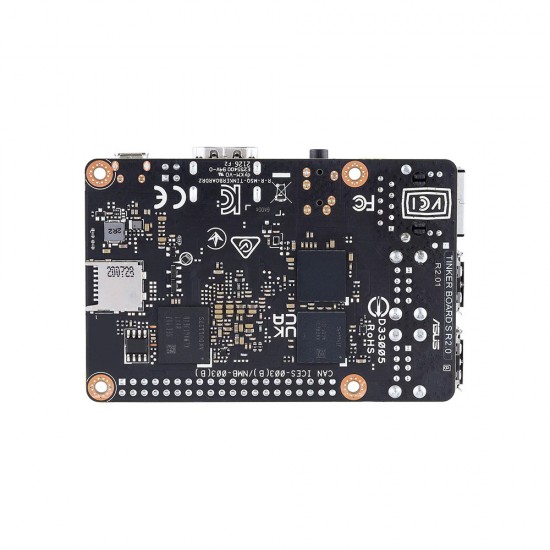

華碩 ASUS｜Tinker Board R2.0｜MB-ATBS2

Tinker Board S R2.0產品簡介：

ARM-based SBC 提供強化且更高的相容性

Tinker Board S R2.0產品特點：

全新改良的 Tinker Board S R2.0 為單板電腦 (SBC)，可為各地的 DIY 玩家和創客提供更高的耐用性、更好的穩定性，以及更完善的整體使用者體驗。

Tinker Board S R2.0產品規格：

CPU	Rockchip Quad-Core RK3288-CG.W processor
Memory	2GB Dual Channel DDR3
Graphic	Integrated Graphics Processor ARM® Mali™-T764 GPU*1
Storage	16GB eMMC Micro SD(TF) card slot
LAN	RTL GB LAN
Wireless Data Network	802.11 b/g/n, Blutetooth V4.2 + EDR
Audio	RTL ALC4030U CODEC
USB Ports	4 x USB 2.0
Internal I/O Ports	1 x 40-pin headers: - up to 28 x GPIO pins - up to 2 x SPI bus - up to 2 x I2C bus - up to 4 x UART - up to 2 x PWM - up to 1 x PCM/I2S - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x 2-pin contact pin: - 1 x PWM - 1 x S/PDIF 1 x 15-pin MIPI DSI 1 x 15-pin MIPI CSI
Accessories	Passive heatsink*2 User manual
Form Factor	3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm )
Weight	55g
Environment	Operation temperature: 0℃ ~ 60℃ Non operation temperature: -40℃ ~ 85℃ Non operation humidity: 0% ~ 85% (Non condensing)
OS Support	Debian 10 / Android 11
Note	*1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder. *2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury.

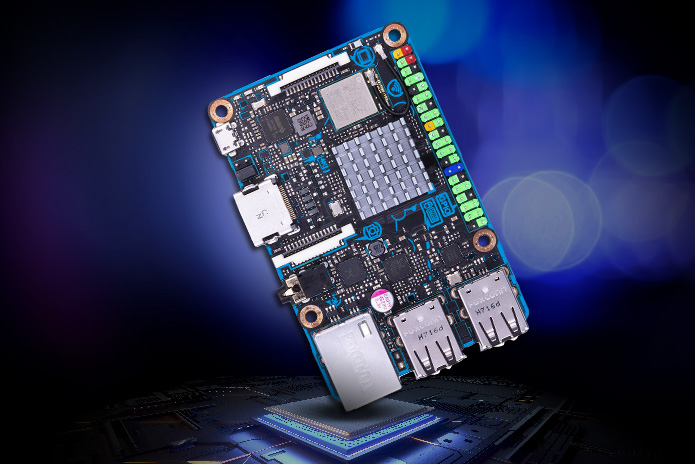

領先同級產品的效能

Tinker Board R2.0 搭載強大且現代化的四核心 ARM-based 處理器 Rockchip RK3288-CG.W，提供大幅優於其他熱門 SBC 主板的效能。Tinker Board R2.0 採用 ARM-based Mali™-T764 GPU，此 GPU 與固定功能處理器可提供廣泛的用途，包括高品質媒體播放、遊戲、電腦視覺、手勢辨識、影像穩定與處理，以及運算攝影等。

* 目前只能透過隨附的媒體播放程式，在 Tinker Board R2.0 上以 30 fps 播放 HD 與 UHD 影片。第三方影片播放程式與應用程式可能未提供硬體加速，浙江導致播放效果受限或不穩定。

HD 音質

Tinker Board R2.0 配備最高支援 24-bit/192kHz 音訊的 HD codec。其內建音訊插孔支援音訊輸出和麥克風輸入，無需延伸模組。

音訊插孔也提供便利的插入偵測功能，因此會在連接揚聲器或耳機時，自動將音訊輸出切換至音訊插孔。



STANDARD INTERFACE FOR IOT CONNECTIVITY

Tinker Board R2.0 具備標準創客連線選項，包括 40-pin GPIO 介面，可供連接各種輸入裝置。Tinker Board R2.0 配備一個 DSI MIPI 介面，可連接顯示器及觸控螢幕。第二個 CSI MIPI 介面可連接相容攝影機以提供電腦視覺等功能。

Tinker Board R2.0 還配備 Gbit LAN 可提供網際網路和區域網路連線。專為 LAN 連接埠設計的匯流排資源可確保穩定的乙太網路效能。Tinker Board R2.0 內建的 Wi-Fi 和 Bluetooth 控制器以金屬外殼屏蔽，以確保最少的干擾及更高的無線效能。內建 IPEX 天線接頭可讓使用者輕鬆更換或升級天線。

Tinker Board R2.0 還配備全尺寸 HDMI 輸出介面。另外，它包含四個 USB 2.0 連接埠，可連接各種周邊裝置及配件。

A VARIETY OF ACCESSORIES AVAILABLE

The PCB dimensions and topology of the Tinker Board S R2.0 series aligns with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.

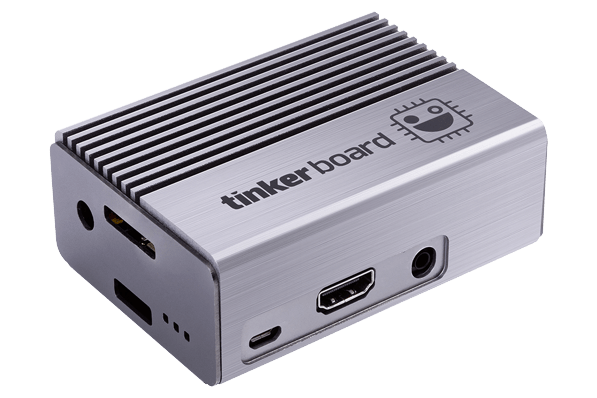

Tinker Board S R2.0 series also includes a heatsink, which provides better thermal solution under heavy loading or in hot ambient environments. Additionally, an optional metallic case is also available for market-ready solution. With hassle-free installation, the aluminum case helps dissipate heat in fanless design, ensuring Tinker Board has a top-notch performance.



Creating new possibilities and advantages, Tinker Board S R2.0 series supports MIPI Convert Board and PoE Splitter Board to enhance convenience and functionality in different scenarios.

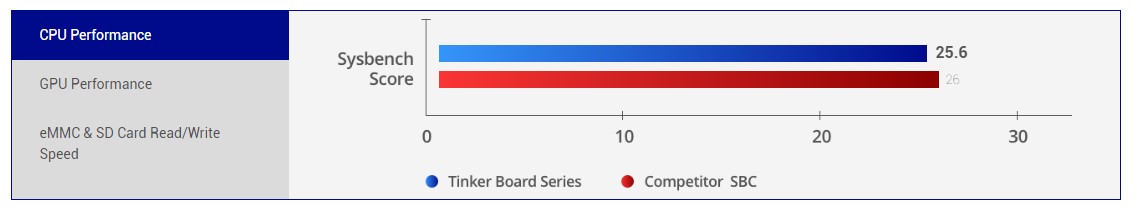

基準測試

* Tinker Board S - 作業系統：Linux 4.4.0+ armv7l l 映像版本：V20170113 l 記憶體類型：2GB l CPU 類型、速度 [GHz]：Cortex-A17 四核心 1.8GHz l GPU 類型、速度 [MHz]：Mali™ T-764

* 競爭產品 SBC - 作業系統：Linux 4.4.11+ armv7l l 記憶體類型：1GB l CPU 類型、速度 [GHz]：Cortex-A53 四核心 1.2GHz l GPU 類型、速度 [MHz]：VideoCore IV

KEY APPLICATION

獎項

* We strongly recommend that you regularly backup all data stored in the device. ASUS shall not be liable for any damage to or loss of programs or data stored in the Tinker Board series, and shall not be responsible for data recovery, backup, or any charges arising therefrom.

* In no event shall ASUS be liable for any defect, damage or data loss arising from product repair or replacement.


The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
